Here's a preview from my zine, How Containers Work!! If you want to see more comics like this, sign up for my saturday comics newsletter or browse more comics!

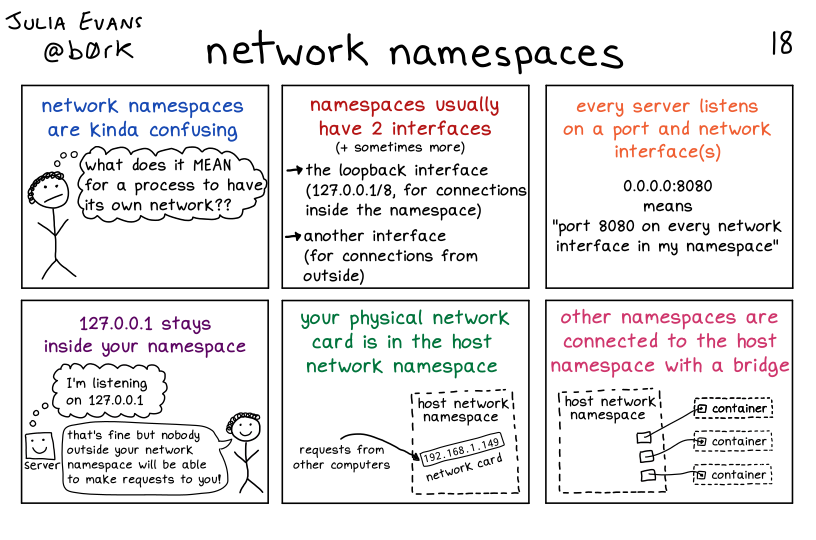

![Image of a comic. To read the full HTML alt text, click "read the transcript".](/images/uploads/network-namespaces.png)
read the transcript!
network namespaces are kinda confusing
Illustration of an unhappy-looking stick figure with curly hair.
person: what does it MEAN for a process to have its own network??
namespaces usually have 2 interfaces
(+ sometimes more) - the loopback interface (127.0.0.1⁄8, for connections inside the namespace) - another interface (for connections from outside)
every server listens on a port and network interface(s)
0.0.0.0:8080
means “port 8080 on every network interface in my namespace”
127.0.0.1 stays inside your namespace
Illustration of a server, represented by a box with a smiley face, and a smiling stick figure with curly hair.
server, thinking: I’m listening on 127.0.0.1
person: that’s fine but nobody outside your network server namespace will be able
to make requests to you!
your physical network card is in the host network namespace
Illustration of a rectangular box drawn with a dotted line. Inside it are: - the label “host network namespace” - 192.168.1.149, with an arrow pointing to it reading “requests from other computers” - network card
other namespaces are connected to the host namespace with a bridge
Illustration of a rectangular box drawn with a dotted line. Inside it are: - the label “host network namespace” - three boxes, each labelled “container”
